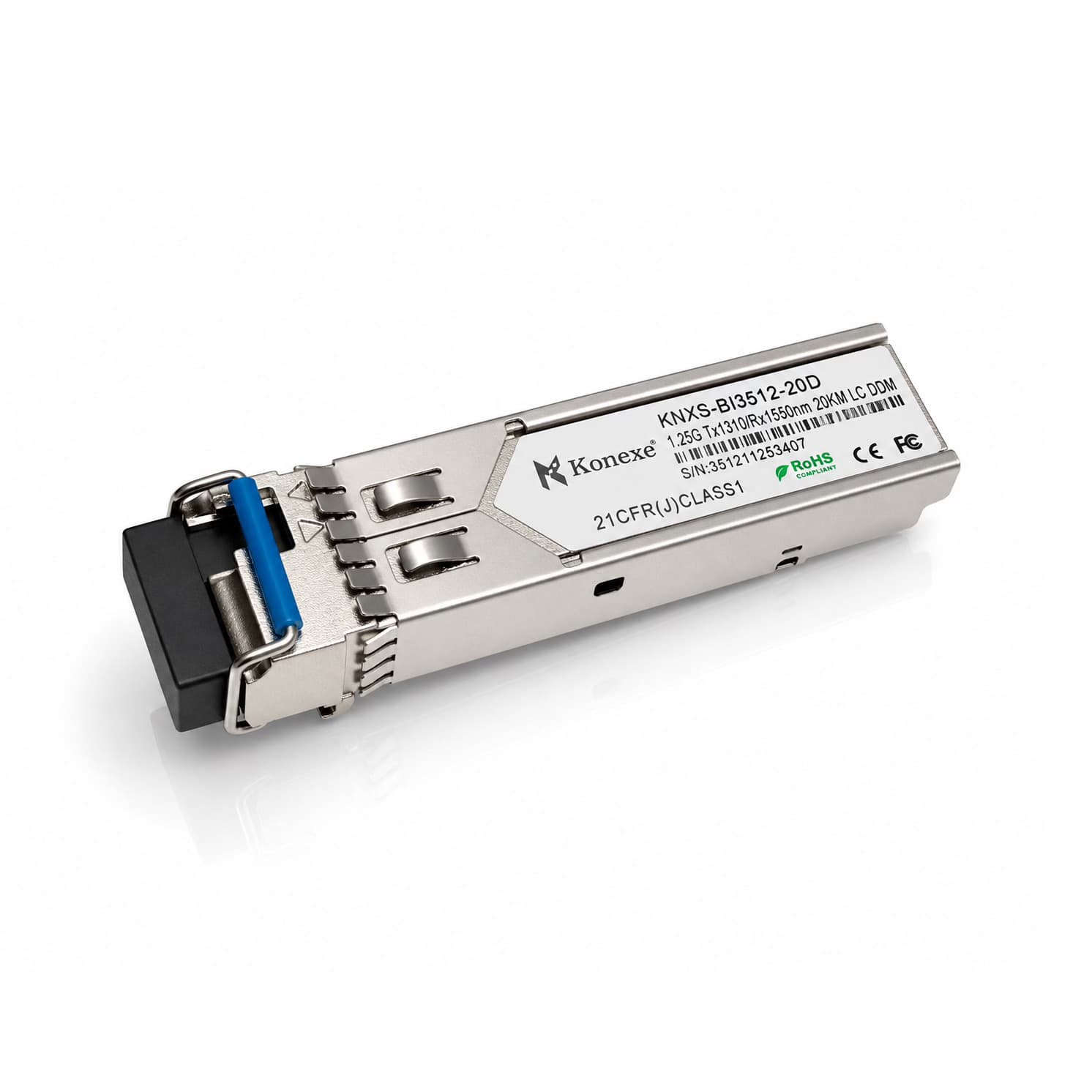

Konexe 1G BiDi SFP 20km Side A
Click to expand

Konexe SFP 1G BiDi 1310/1550nm, 20km

Speed: 1.25 Gbps. Wavelength: Tx 1310nm / Rx 1550nm. Distance: 20km. Interface: LC Simplex. Feature: Single Fiber WDM.

Part NumberKNXS-BI3512-20D
CategoryFIBER NETWORKING
SubcategoryTRANSCEIVERS SFP MODULES

Product Overview

The Konexe SFP 1G BiDi (20km / Side A) is the standard WDM Transceiver for Fiber-to-the-Home (FTTH) and ISP networks. It transmits on 1310nm and receives on 1550nm, allowing you to establish a Gigabit link using only one fiber core.

This "Side A" (Blue) module must be paired with a "Side B" (Yellow/1550nm) module. Fully compatible with most standard media converters and switches.

Key Specifications

  • Rate: 1.25 Gbps
  • Distance: 20km
  • Connector: LC Simplex
  • Wavelength: Tx 1310nm / Rx 1550nm
